COLLABORATION OF IMAGINATION
Forging strategic partnerships since 1986, we leverage the expertise of our esteemed associates to deliver engineering precision and groundbreaking solutions. Our collaborative approach ensures that we meet our clients' ever-evolving needs with reliability and cutting-edge technology. By uniting forces with industry leaders, we maintain our position at the forefront of technological advancements.
TECHNICAL SPECIFICATION OF MACHINES

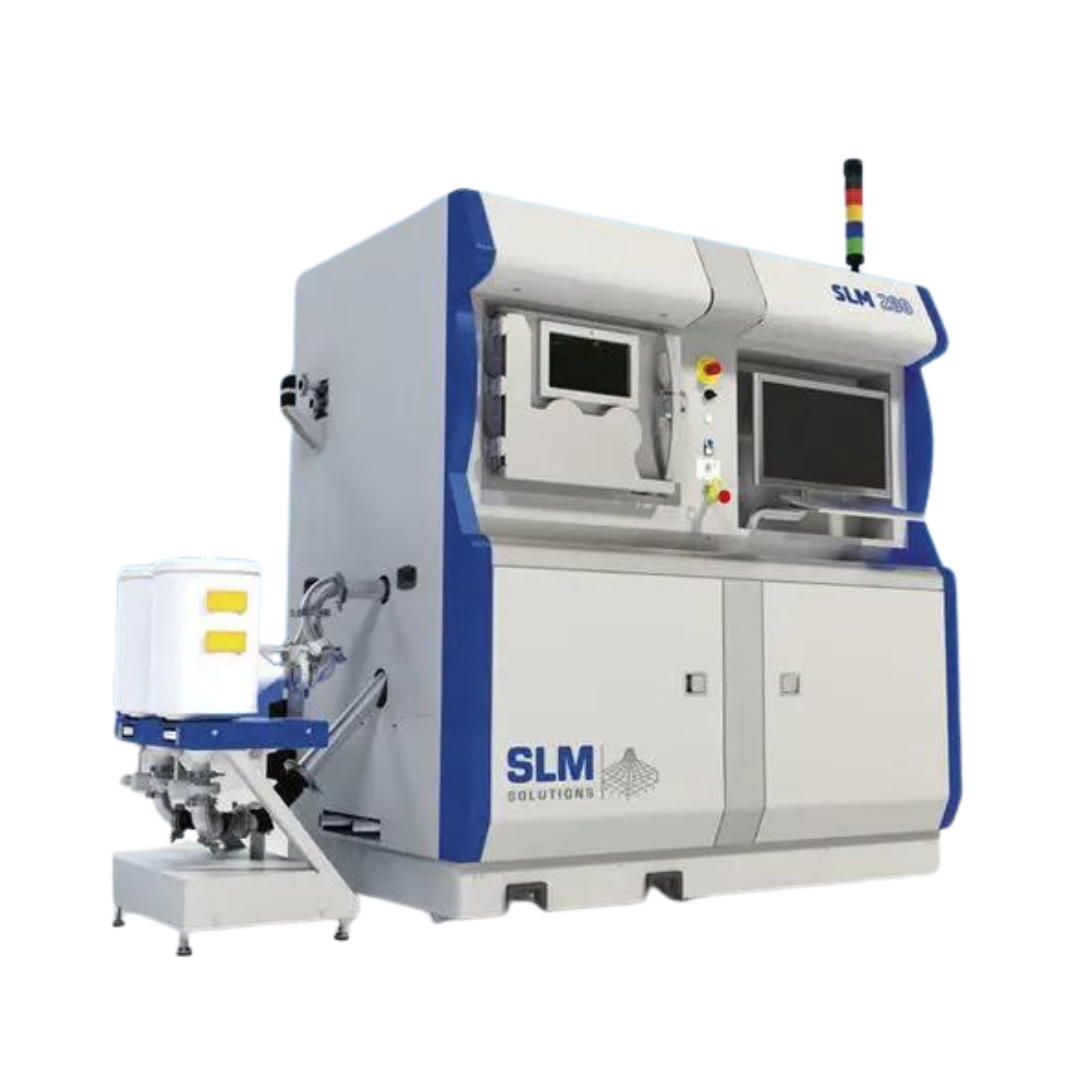

SLM®280 METAL 3D PRINTING
Build Size: L 280 x W 280 x H 365 mm
Productivity (Build Rate): Up to 88 cm³/Hr
Max Scan Speed: 10 m/s
Laser Power: Dual 400W/3NPE, 63 A, 50/60 Hz, 3.5/4.5 kW
Max Part Weight: 120 Kg
Layer Thickness: 20 - 100 μm
Material: Aluminum, SS, Any Alloy, Titanium etc.
Productivity (Build Rate): Up to 88 cm³/Hr
Max Scan Speed: 10 m/s
Laser Power: Dual 400W/3NPE, 63 A, 50/60 Hz, 3.5/4.5 kW
Max Part Weight: 120 Kg
Layer Thickness: 20 - 100 μm
Material: Aluminum, SS, Any Alloy, Titanium etc.

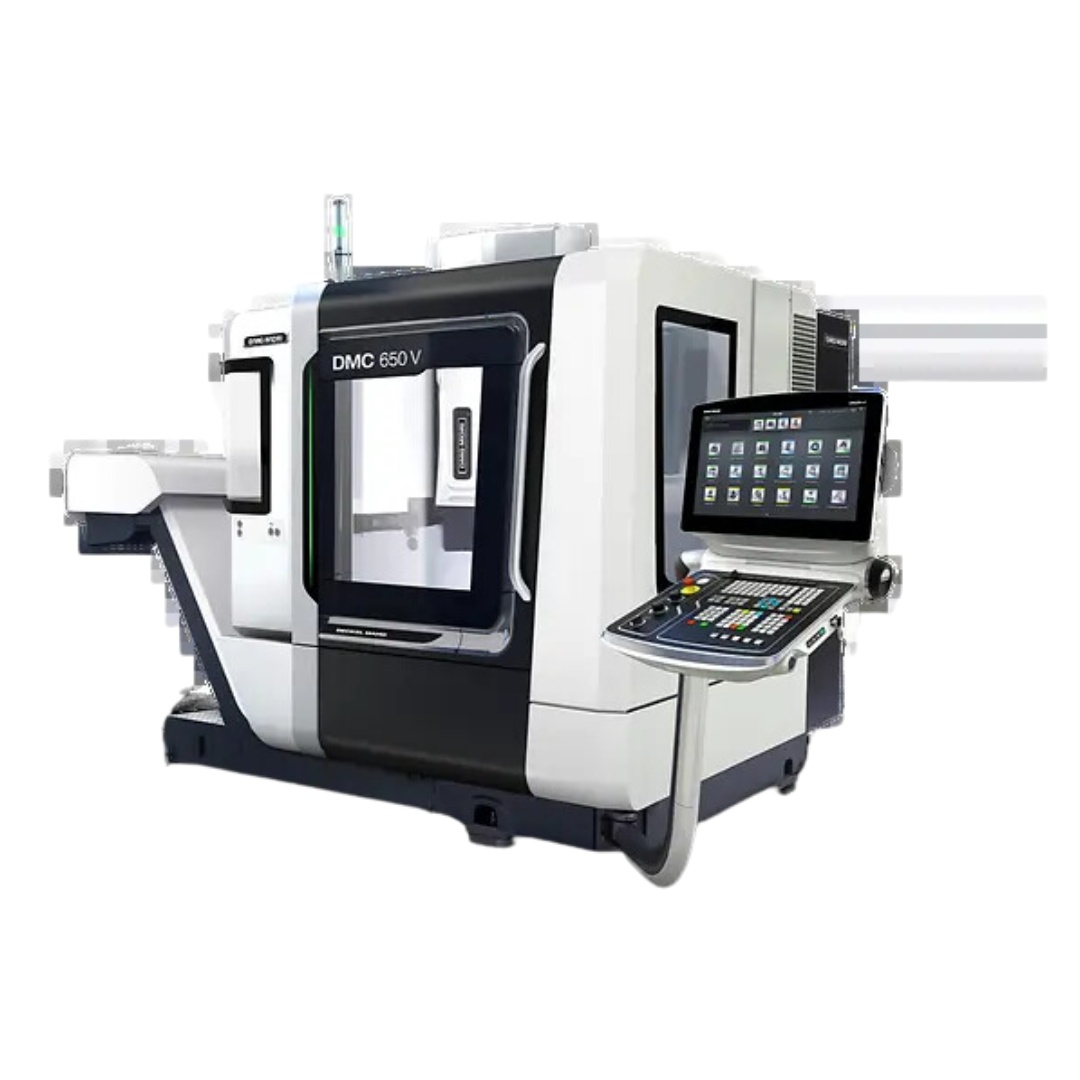

DMG DMC 650 V CNC VMC MACHINE
Machine Weight: 7250 Kgs
Maximum Workpiece Dimensions: (W x D x H) 650 x 520 x 370 mm
Maximum Workpiece Weight: 800 Kgs
Table Dimensions: (W x D) 960 x 570 mm
Maximum Spindle RPM: 20000
Maximum Workpiece Dimensions: (W x D x H) 650 x 520 x 370 mm
Maximum Workpiece Weight: 800 Kgs
Table Dimensions: (W x D) 960 x 570 mm
Maximum Spindle RPM: 20000

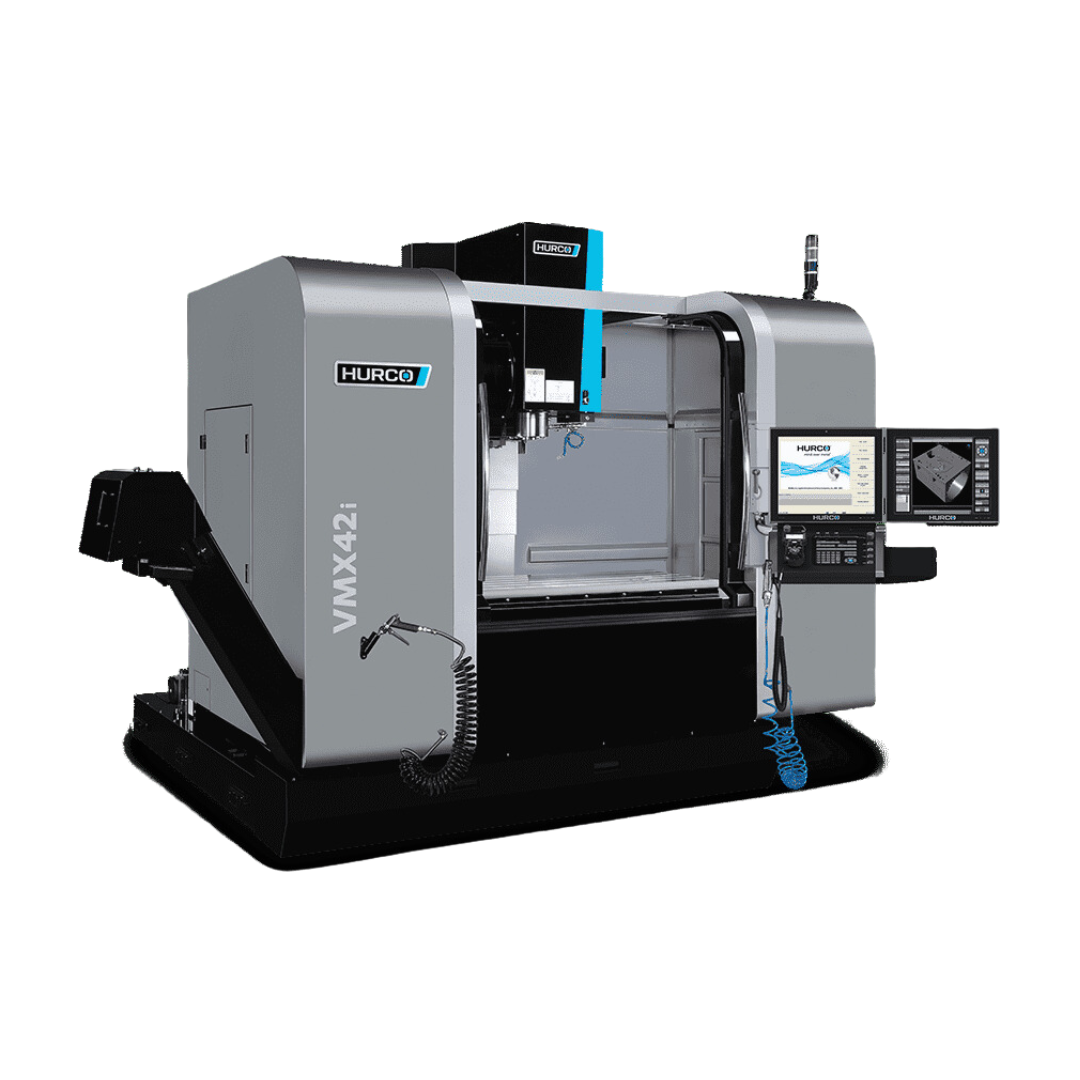

HURCO VMX421 CNC VMC MACHINE
Machine Weight: 6590 Kgs
Maximum Workpiece Dimensions: (W x D x H) 1200 x 600 x 500 mm
Maximum Workpiece Weight: 1360 Kgs
Table Dimensions: (W x D) 1270 x 610 mm
Maximum Spindle RPM: 12000
Maximum Workpiece Dimensions: (W x D x H) 1200 x 600 x 500 mm
Maximum Workpiece Weight: 1360 Kgs
Table Dimensions: (W x D) 1270 x 610 mm
Maximum Spindle RPM: 12000

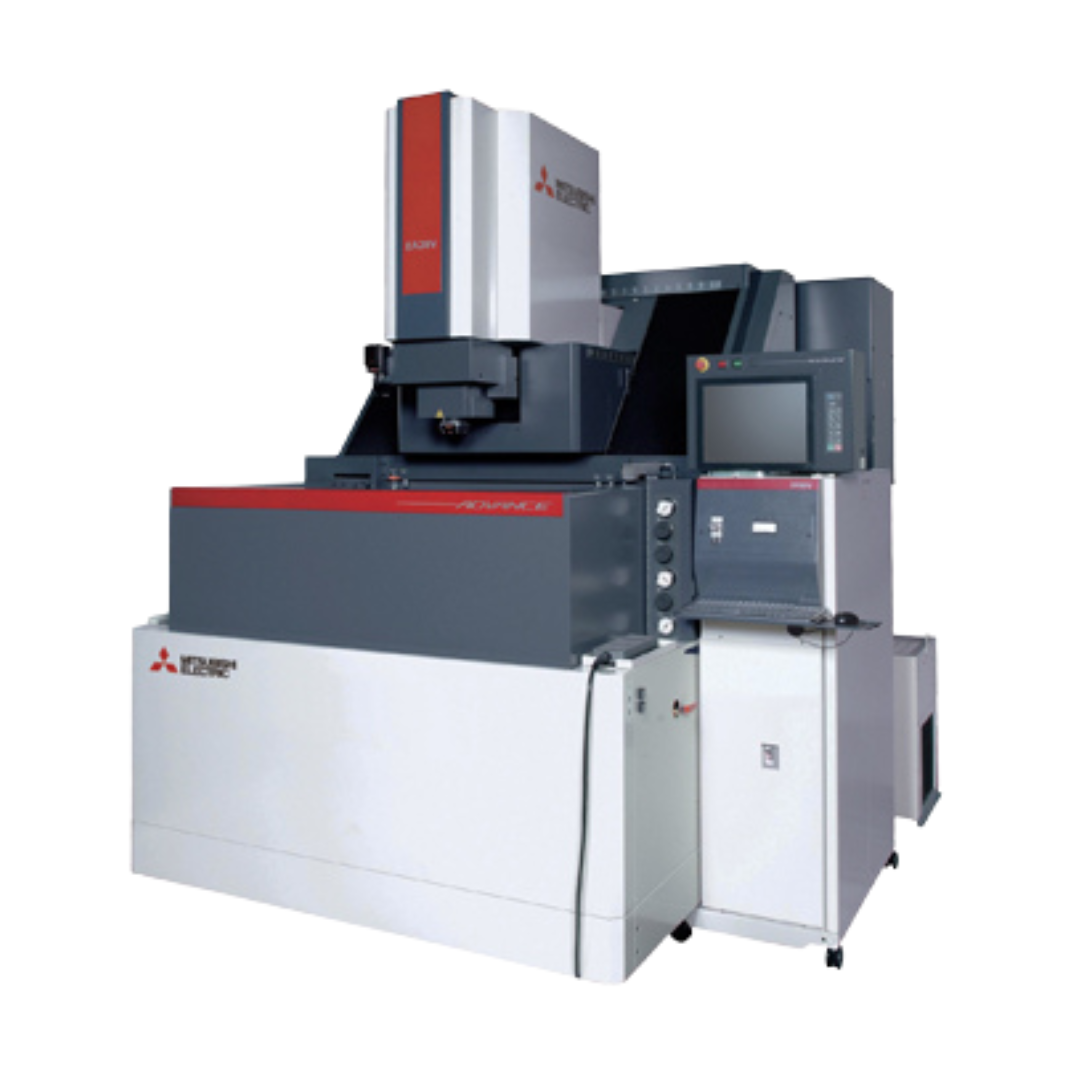

MITSUBISHI EA28VA CNC SPARK EDM
Max Workpiece dimensions (W x D x H): 1100 x 810 x 450 mm
Max workpiece weight: 2000 Kgs.
Table Dimensions (W x D): 850 x 600 mm
Max workpiece weight: 2000 Kgs.
Table Dimensions (W x D): 850 x 600 mm

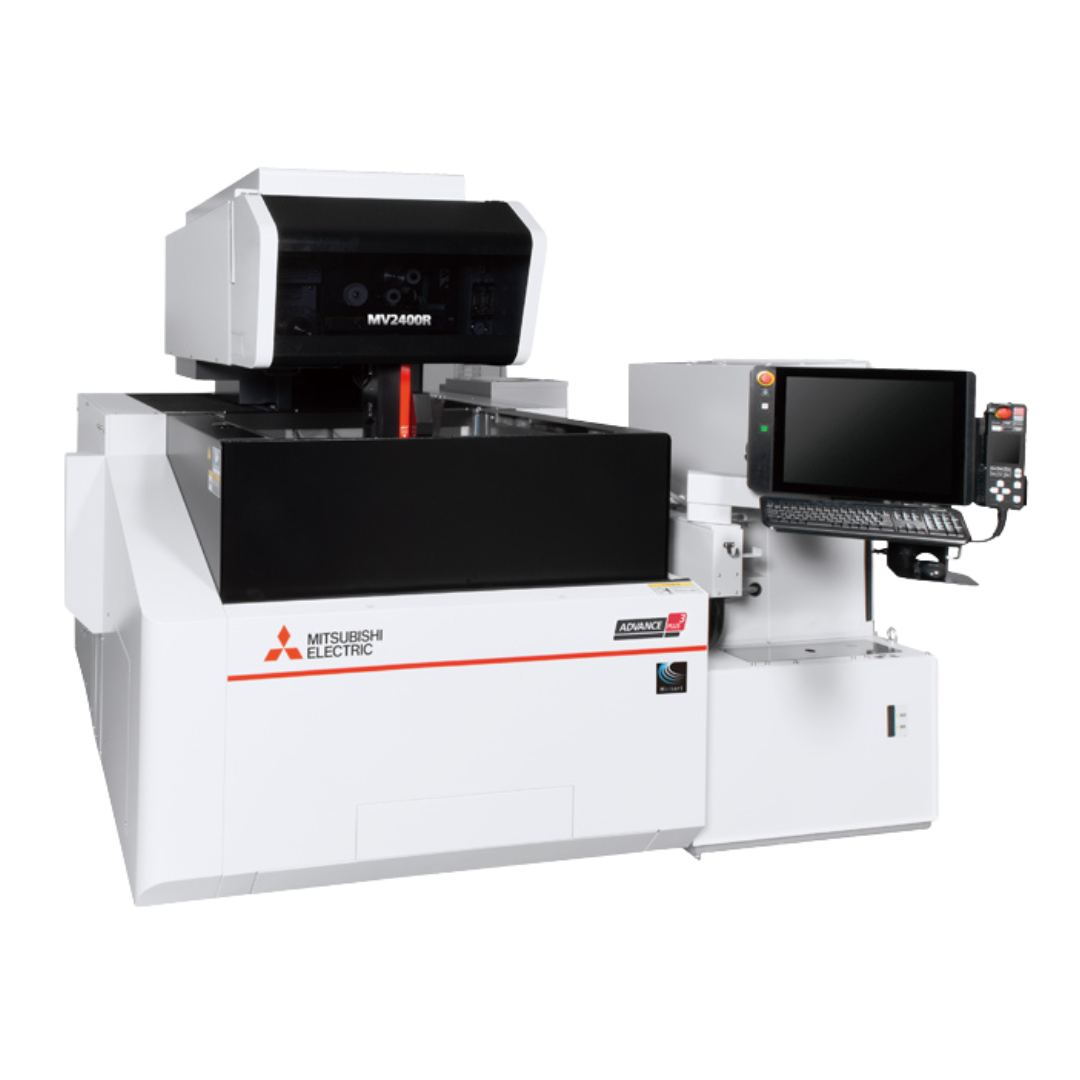

MITSUBISHI MV2400R CNC WIRE CUT EDM
Max Workpiece dimensions:(WxDxH) 1050 x 820 x 305mm
Max workpiece weight: 1500kg
Table dimensions (WxD): 840 x 640mm
Table structure: Movable
Max workpiece weight: 1500kg
Table dimensions (WxD): 840 x 640mm
Table structure: Movable
MITSUBISHI ED2000RN CNC DRILL MACHINE
Max Workpiece Dimensions: (W x D x H) 480 x 210 x 155 mm
Workpiece Weight: 200 Kg
Machine Tool Weight: 650 Kgs
Workpiece Weight: 200 Kg
Machine Tool Weight: 650 Kgs

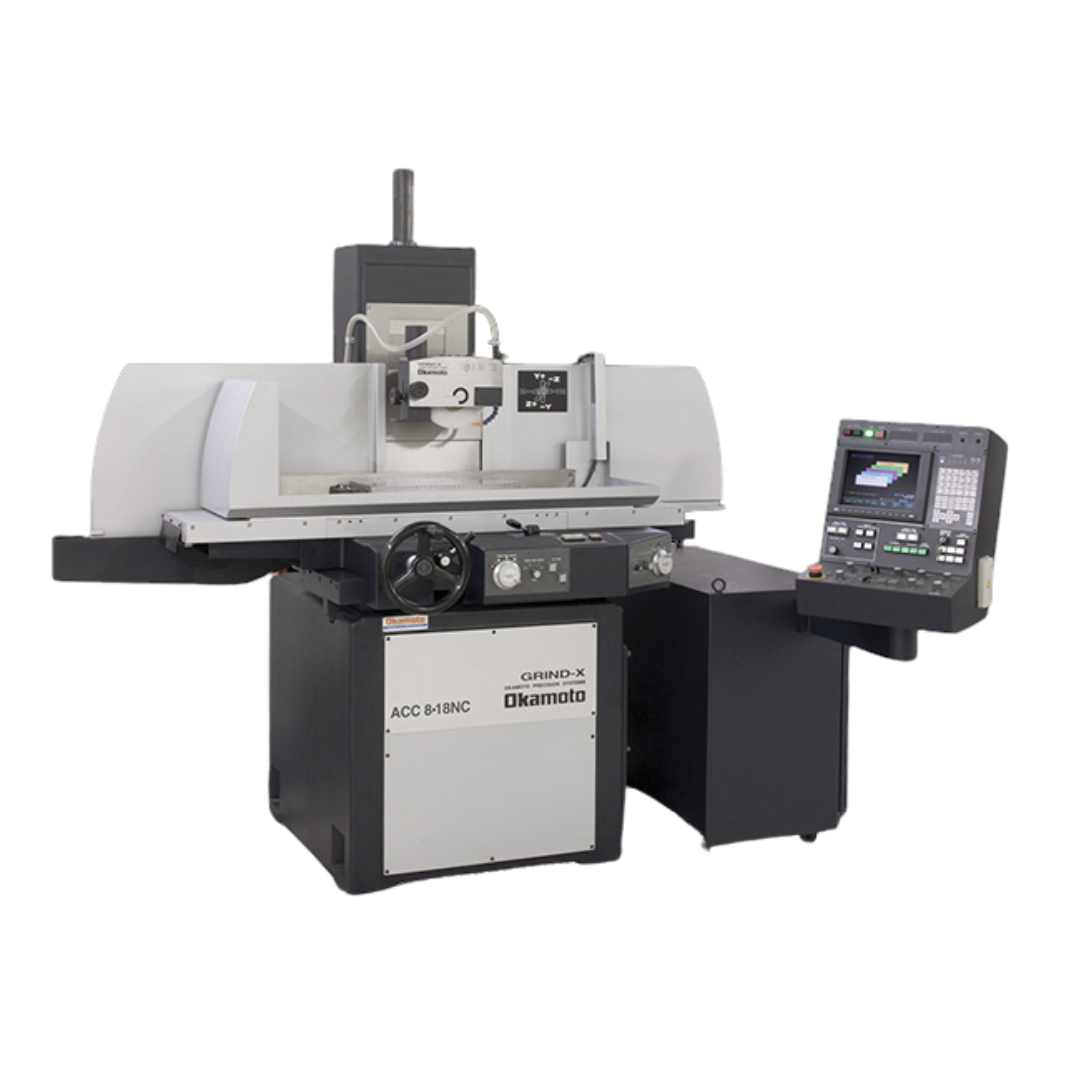

OKAMOTO CNC MODEL 8.18 CNC SURFACE GRINDING MACHINE
Table Movement (Longitudinal x Cross): 530 x 230 mm
Max. Vertical Clearance: 575 mm
Std. Chuck Size: 450 x 200 mm
Table Load Capacity (Including Chuck): 128 Kgs
Minimum Feed Rate: 0.05 Micron
Max. Vertical Clearance: 575 mm
Std. Chuck Size: 450 x 200 mm
Table Load Capacity (Including Chuck): 128 Kgs
Minimum Feed Rate: 0.05 Micron

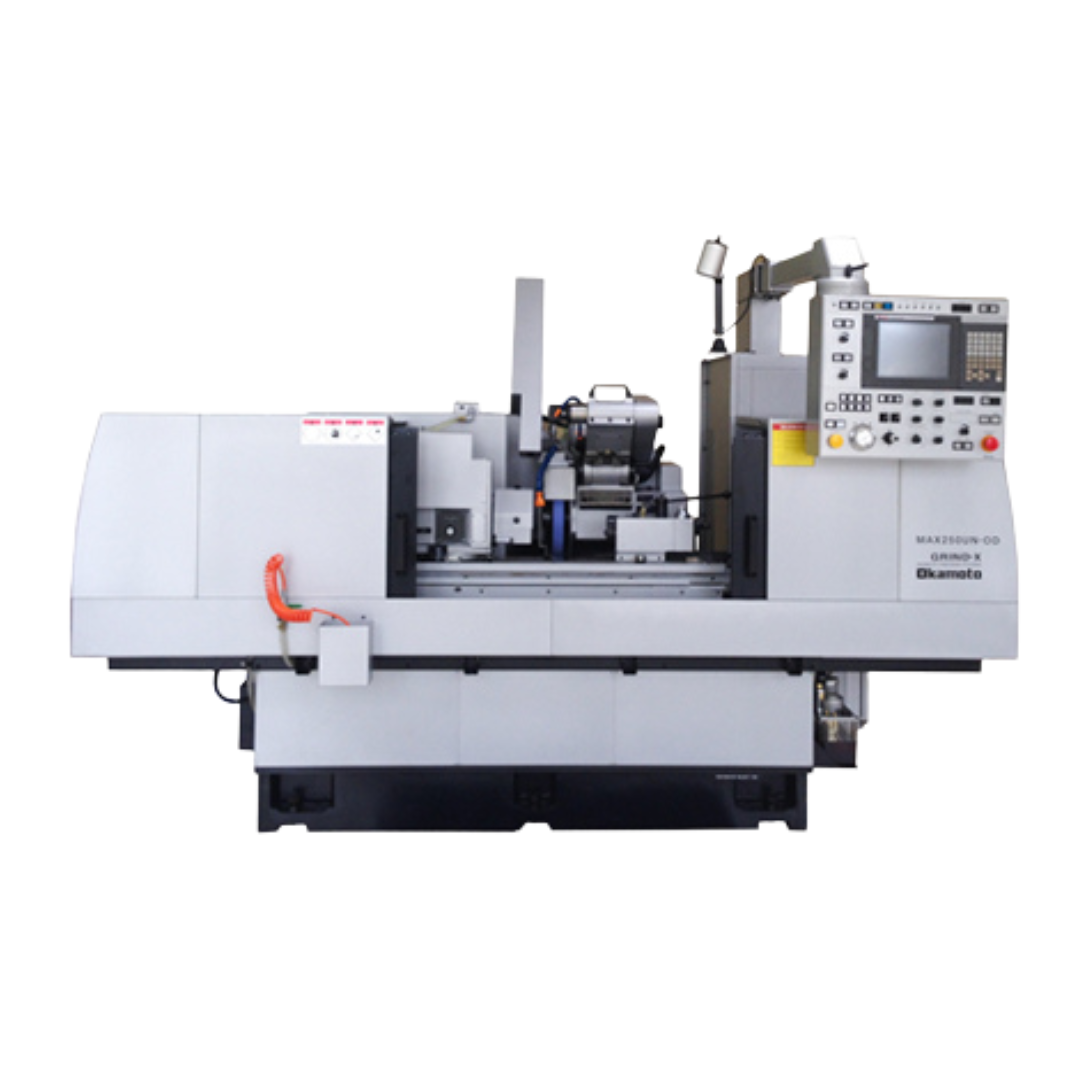

OKAMOTO MAX-OD 300 SERIES-390 UNIVERSAL CYLINDRICAL GRINDING MACHINE
Maximum : OD 300 mm
Maximum Length Between Centres: 900 mm
Maximum Feed Rate: 0.10 mm/rev
Micron Internal Grinding Maximum RPM: 18,000 RPM
Maximum Length Between Centres: 900 mm
Maximum Feed Rate: 0.10 mm/rev
Micron Internal Grinding Maximum RPM: 18,000 RPM

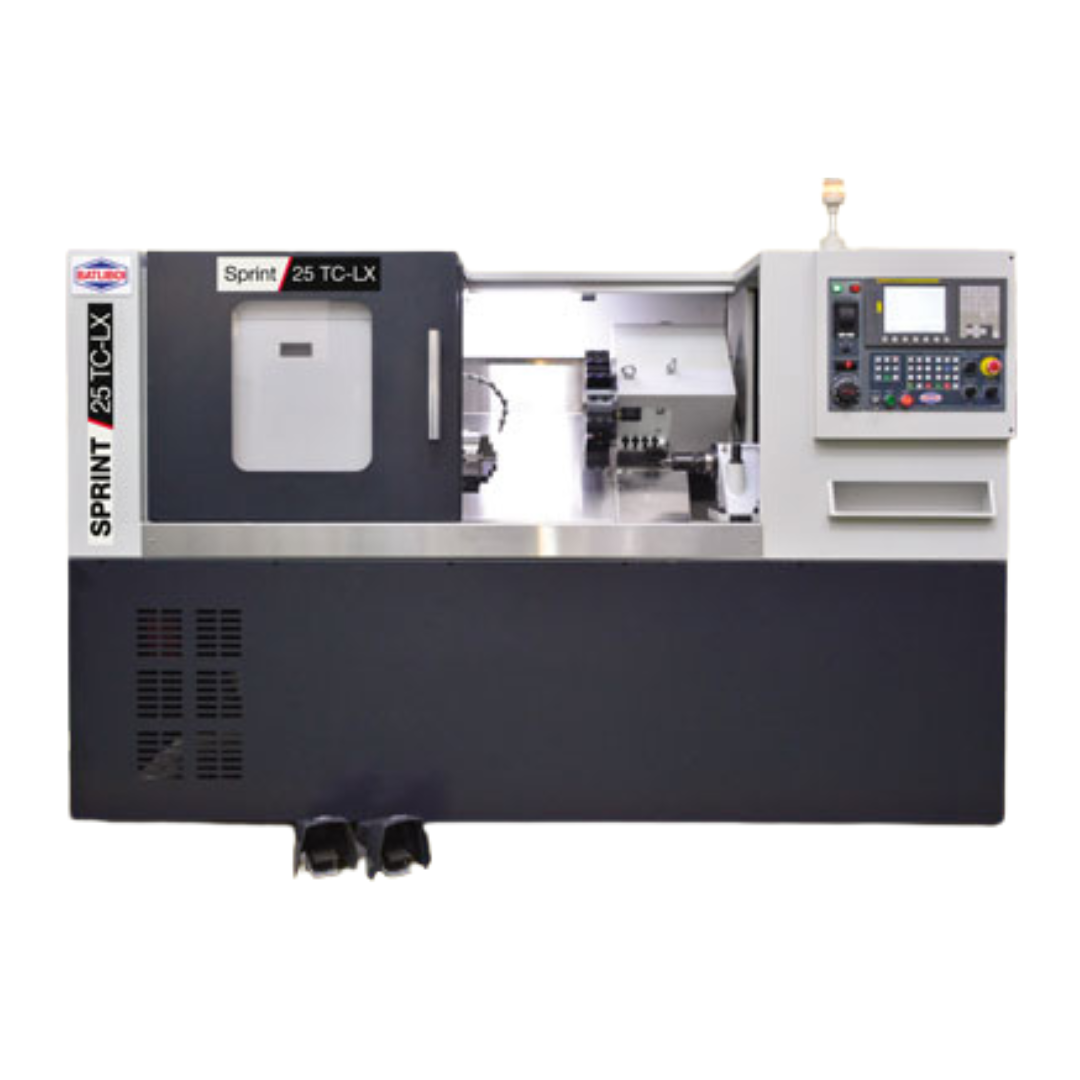

BATLIBOI SPRINT 25TC LX 1200, FANUC Oi TF
Maximum Turning Dia: 350 mm
Between Centre Length: 1200 mm
Speed Range (Infinitely variable) RPM: 30 - 2500
Between Centre Length: 1200 mm
Speed Range (Infinitely variable) RPM: 30 - 2500

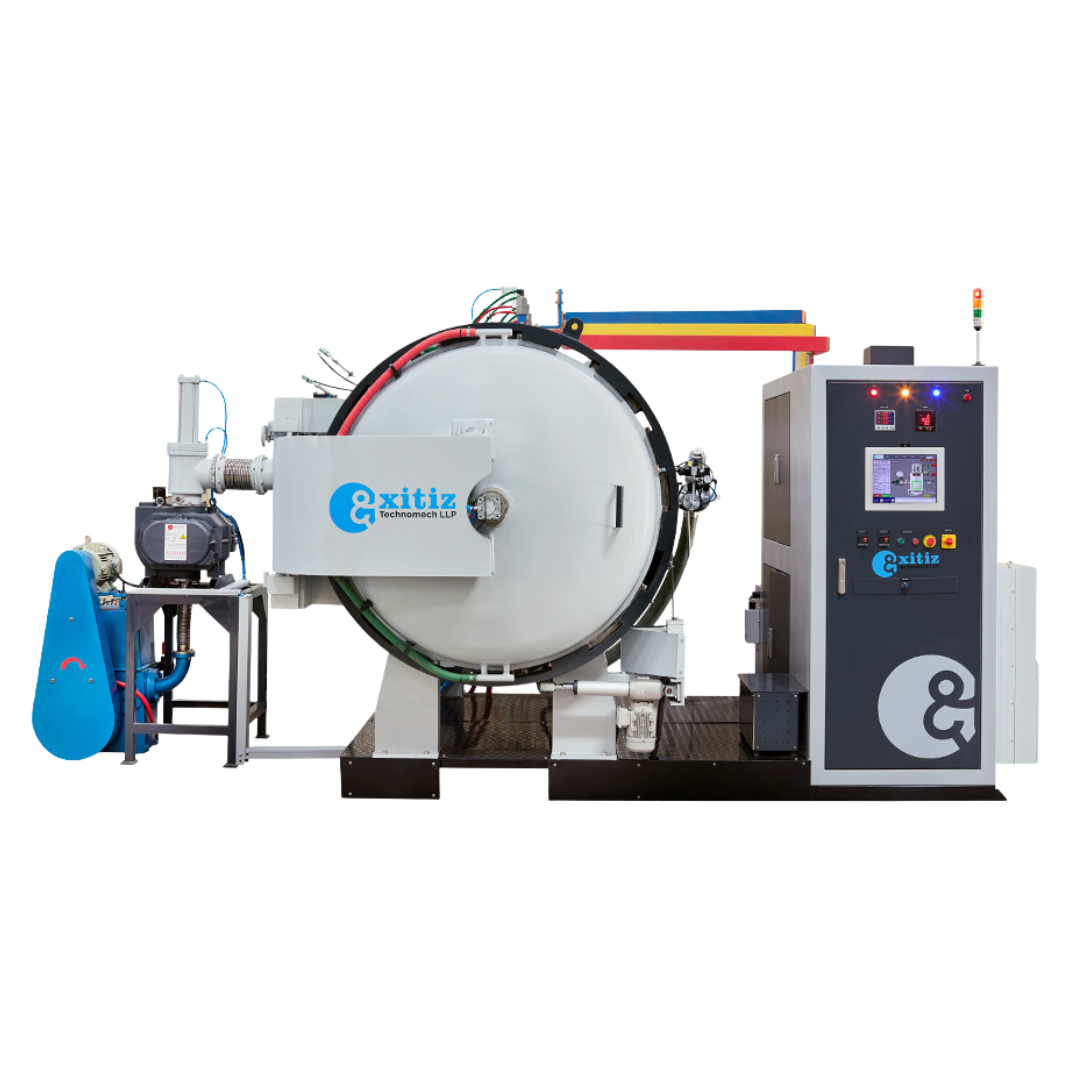

XITIZ VACUUM HEAT TREATMENT FURNACE
Dimensions: (W x H x L) 600 x 600 x 900 mm
Heating Rate: 0-10°C/Min (Maximum)
Maximum Gross Load: 600 Kg
Max Temperature: 1280°C
Operating Temperature Up to 1260°C with controlled Ramp and Soaking under Vacuum
Power Supply: 415 V, 3 Phase AC
Heating Rate: 0-10°C/Min (Maximum)
Maximum Gross Load: 600 Kg
Max Temperature: 1280°C
Operating Temperature Up to 1260°C with controlled Ramp and Soaking under Vacuum
Power Supply: 415 V, 3 Phase AC

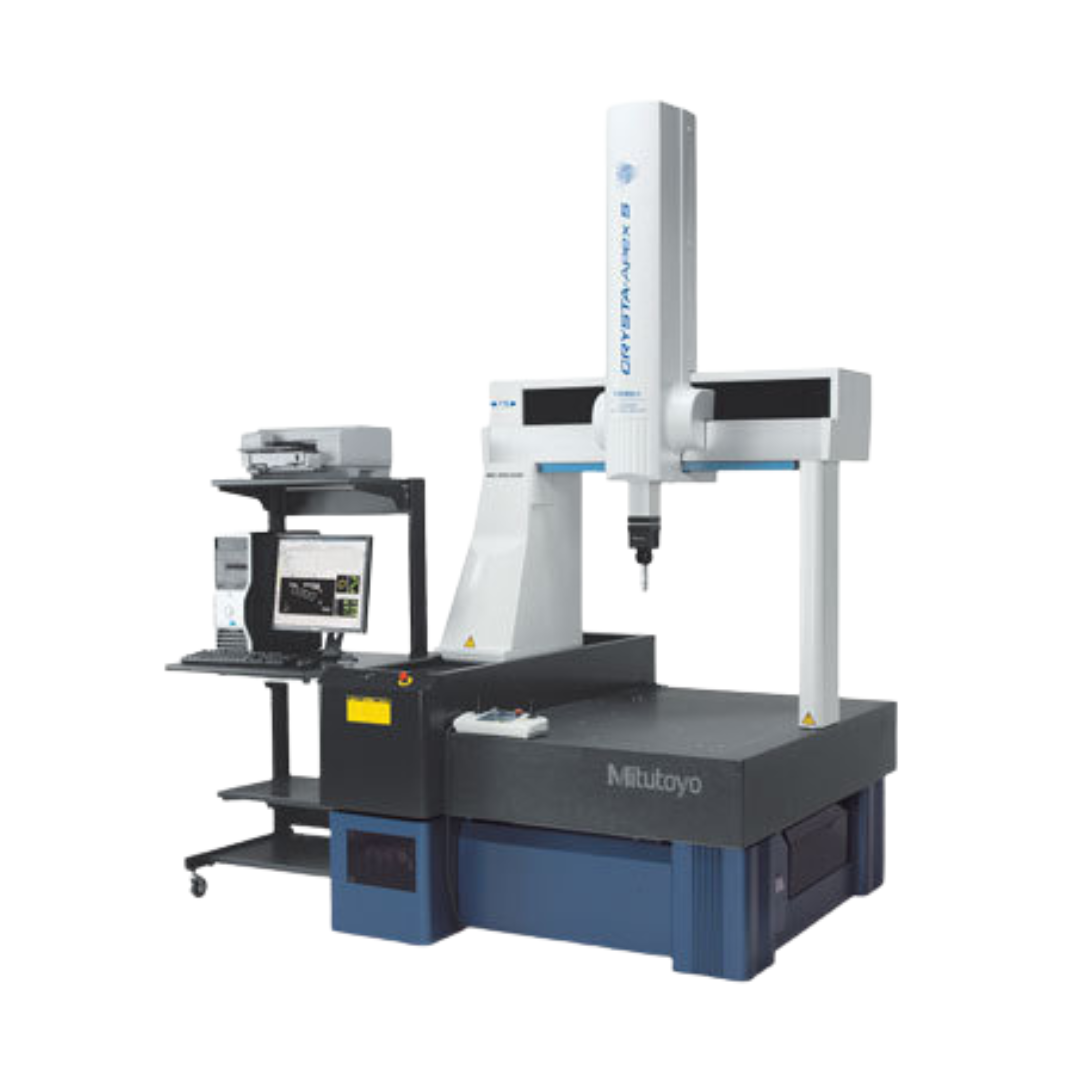

MITUTOYO CRYSTA APEX S-9108 CNC CMM MACHINE
Measuring Stroke(X/Y/Z): 1200 x 2000 x 1000 mm
Probing System: PH10M + SP25 Scanning
Accuracy E0 at 20 degree +/- 1: 2.3+4L/1000 μm (X/Y/Z Measuring Length) at 1000mm Length Accuracy: 5.3 micron
Scanning Accuracy: 1.8 μm
Resolution: 0.1 micron
Probing System: PH10M + SP25 Scanning
Accuracy E0 at 20 degree +/- 1: 2.3+4L/1000 μm (X/Y/Z Measuring Length) at 1000mm Length Accuracy: 5.3 micron
Scanning Accuracy: 1.8 μm
Resolution: 0.1 micron

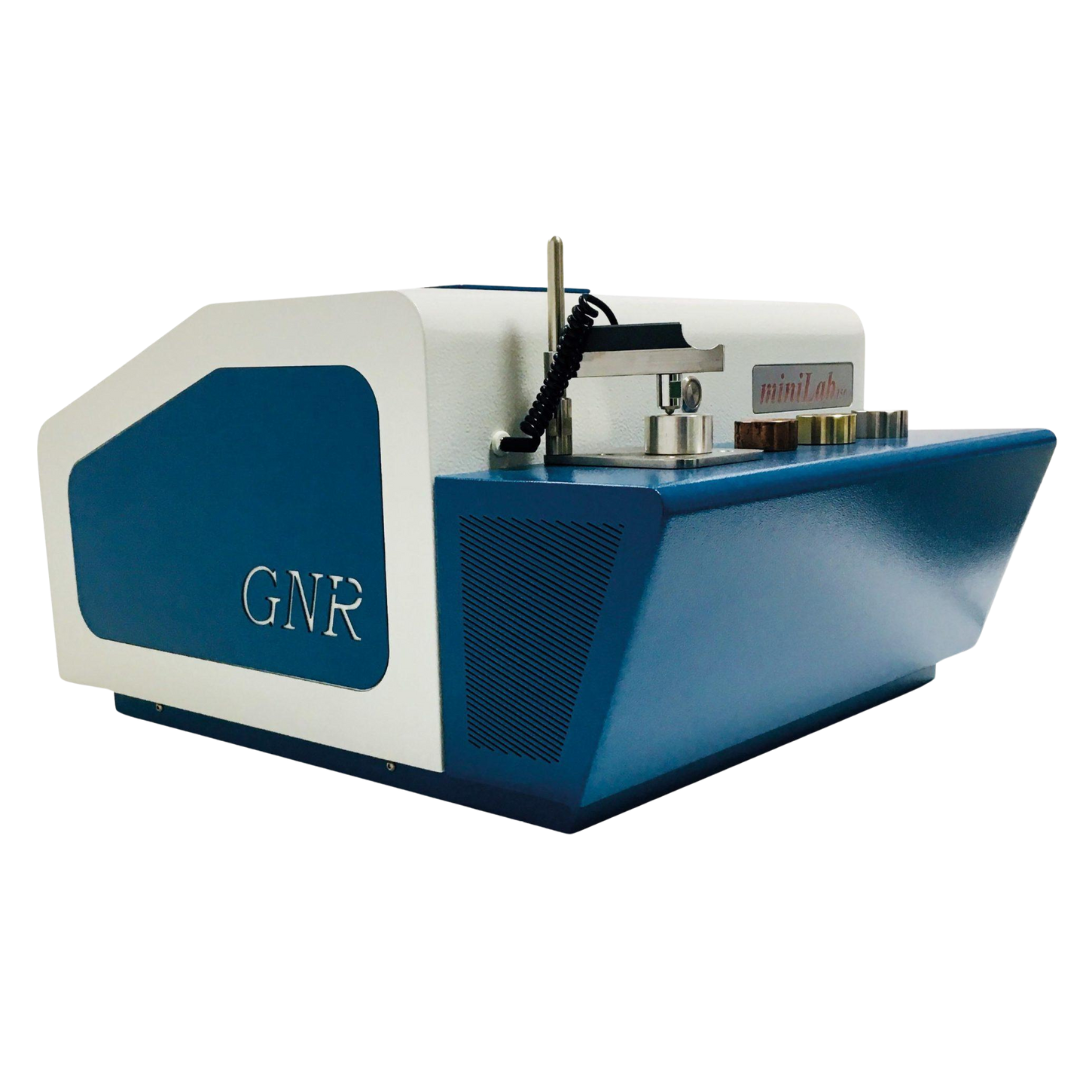

GNR 31 MINILAB 150 OPTICAL EMISSION SPECTROMETER
Applications: Fe, Al, Cu, Ni, Zn, Sn, Ti, Mg, Co
Wavelength Range: 150 nm
Optical Emission Lines: 20000
Wavelength Range: 150 nm
Optical Emission Lines: 20000

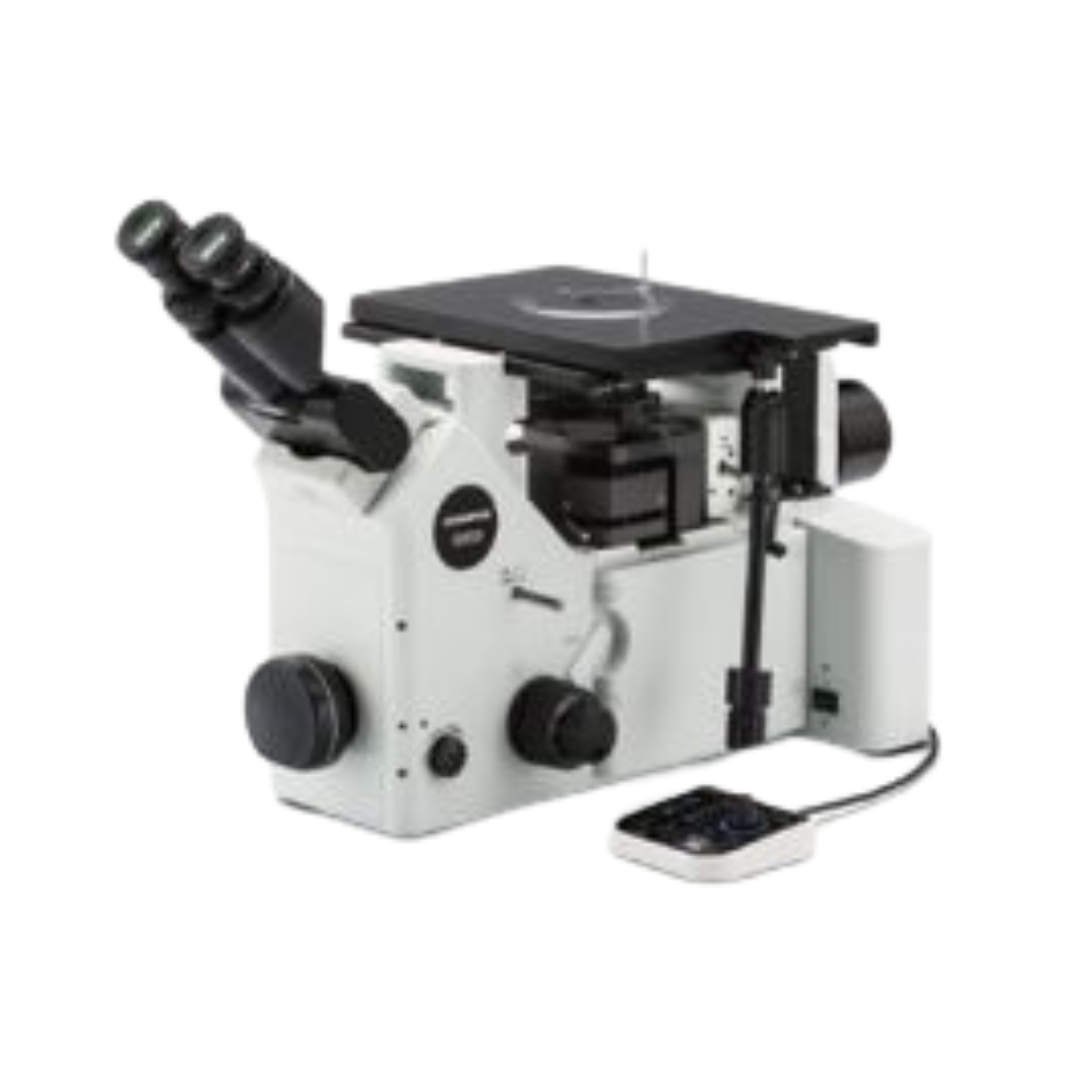

INVERTED METALLURGICAL MICROSCOPE
Sensor: 1/2.5" CMOS, Micron (MT9P031)
S/N Ratio: 43.5 dB
Sensitivity: 1.0V/Lux-sec (550nm) Power Supply: DC 5V ±5%
Progressive Scanning: 2592 x 1944 (8 Bit)
S/N Ratio: 43.5 dB
Sensitivity: 1.0V/Lux-sec (550nm) Power Supply: DC 5V ±5%
Progressive Scanning: 2592 x 1944 (8 Bit)

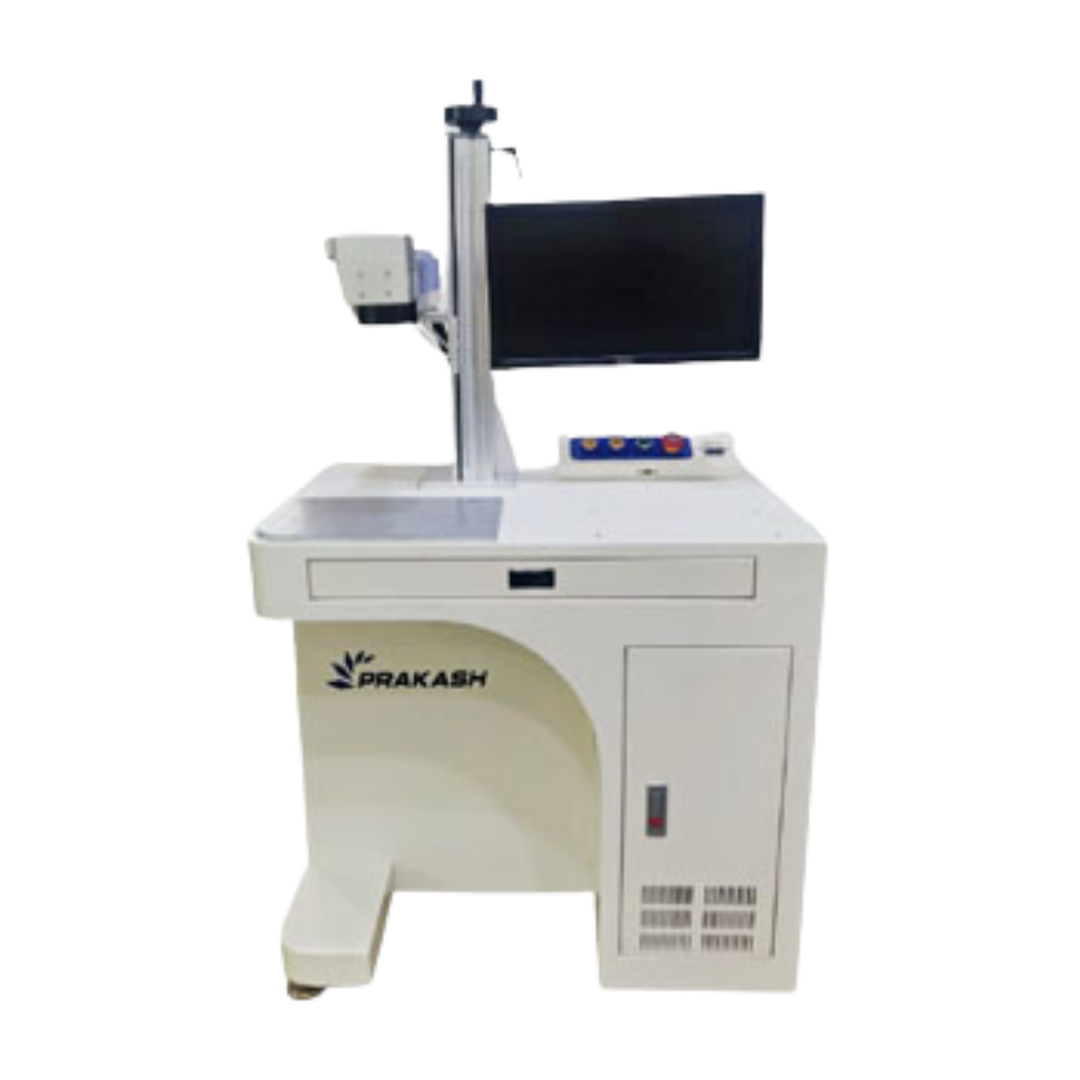

FIBER LASER MARKING MACHINE
Laser System for Material Processing
Model: LSM FM 50
Type: STPL
Power: 50W
Model: LSM FM 50
Type: STPL
Power: 50W
